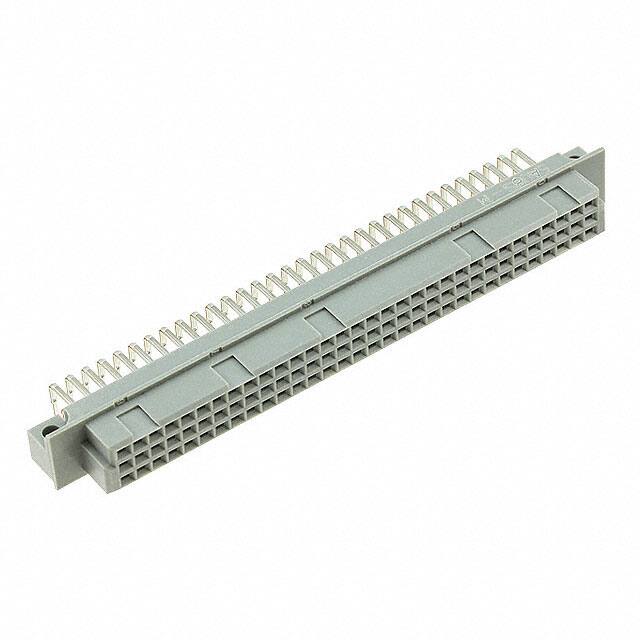

PCN10B-96S-2.54DS(72)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Material Insulation

Polybutylene Terephthalate (PBT)

Max Current Rating

2A

Number Of Positions Loaded

All

Durability

500 Cycles

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Style

R

Depth

17.77mm

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Pitch

0.100 2.54mm

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Connector Type

Receptacle, Female Sockets

Akım Değeri

2A

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B,C

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Total Number Of Contacts

96

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Mating Contact Row Spacing

0.1 inch

Plating Thickness

8μin

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Number Of Pcb Rows

3

Sıra Sayısı

3

Pcb Contact Row Spacing

2.54 mm

Pozisyon Sayısı

96

Contact Resistance

20mOhm

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

Flammability Rating

UL94 V-0
