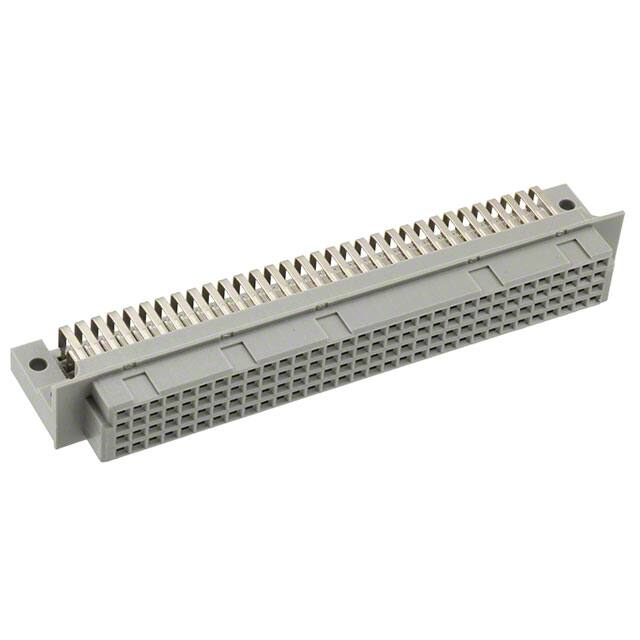

PCN10B-128S-2.54DS(72)

Teknik Özellikler

Parça Durumu

Active

Seri

PCN10

Pozisyon Sayısı

128

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

128

Orientation

Right Angle

Connector Type

Receptacle, Female Sockets

Body Depth

0.399 inch

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B,C,D

Housing Color

Grey

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Insulator Color

GRAY

Din Conformance

YES

Mil Conformance

NO

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Ac

300V

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Flammability Rating

UL94 V-0

Iec Conformance

YES

Uzunluk

94mm

Number Of Pcb Rows

4

Sıra Sayısı

4

Filter Feature

NO

Contact Style

SQ PIN-SKT
