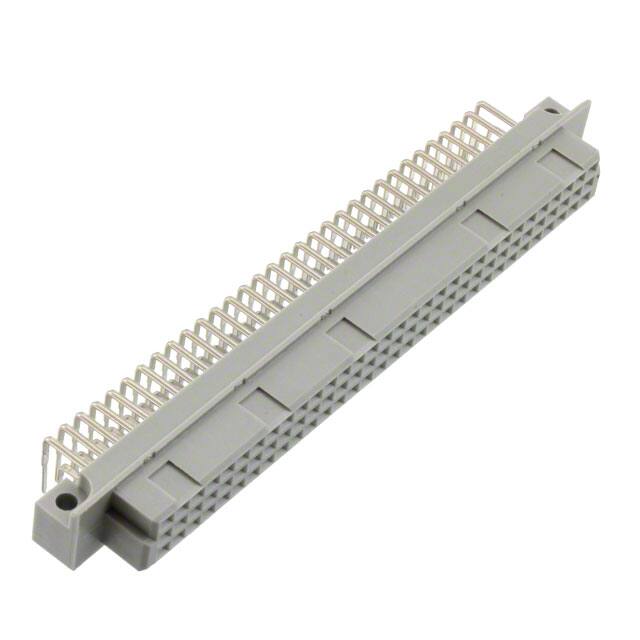

PCN10A-96S-2.54DS(72)

Teknik Özellikler

Depth

17.77mm

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Çalışma Sıcaklığı

-55°C~85°C

Max Current Rating

2A

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Connector Type

Receptacle, Female Sockets

Akım Değeri

2A

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B,C

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Mating Contact Row Spacing

0.1 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Plating Thickness

8μin

Contact Style

SQ PIN-SKT

Total Number Of Contacts

96

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Orientation

Right Angle

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Body Breadth

0.404 inch

Flammability Rating

UL94 V-0
