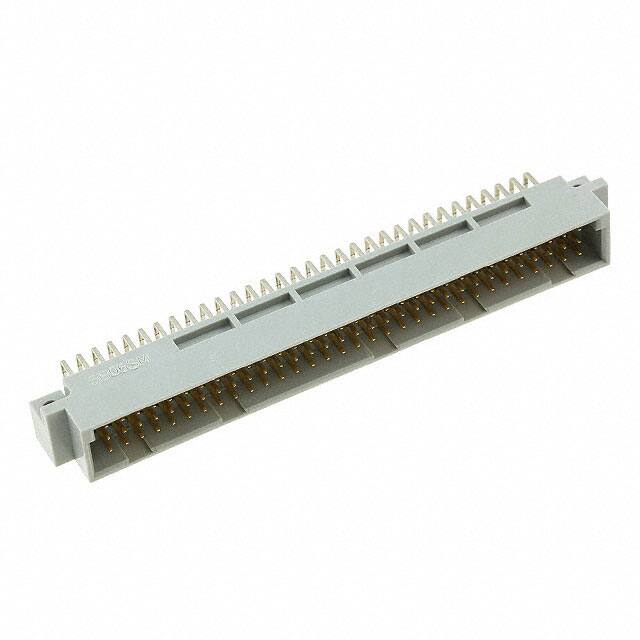

PCN10A-96P-2.54DS(72)

Teknik Özellikler

Bodyshell Style

RECEPTACLE

Polarization Key

POLARIZED HOUSING

Contact Style

SQ PIN-SKT

Uzunluk

94mm

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Pcb Contact Row Spacing

2.54 mm

Number Of Pcb Rows

3

Sıra Sayısı

3

Terminal

Solder

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Depth

17.72mm

Max Current Rating

2A

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Contact Gender

FEMALE

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

96

Orientation

Right Angle

Parça Durumu

Active

Seri

PCN10

Pozisyon Sayısı

96

Contact Materials

Brass

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Max Voltage Rating Ac

300V
