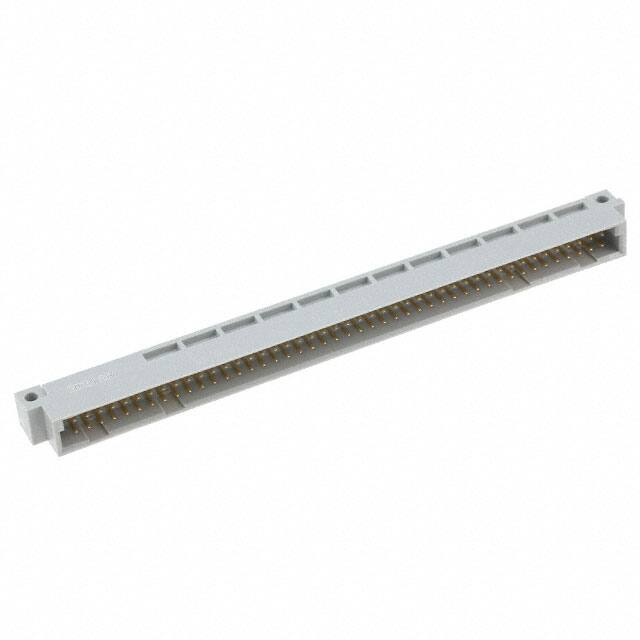

PCN10A-90P-2.54DS(72)

Teknik Özellikler

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Connector Type

Header, Male Pins

Akım Değeri

2A

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~85°C

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Style

B

Terminal

Solder

Ambalaj

Tray

Number Of Pcb Rows

2

Sıra Sayısı

2

Pozisyon Sayısı

90

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.339 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Seri

PCN10

Body Length Or Diameter

5.001 inch

Total Number Of Contacts

90

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks
