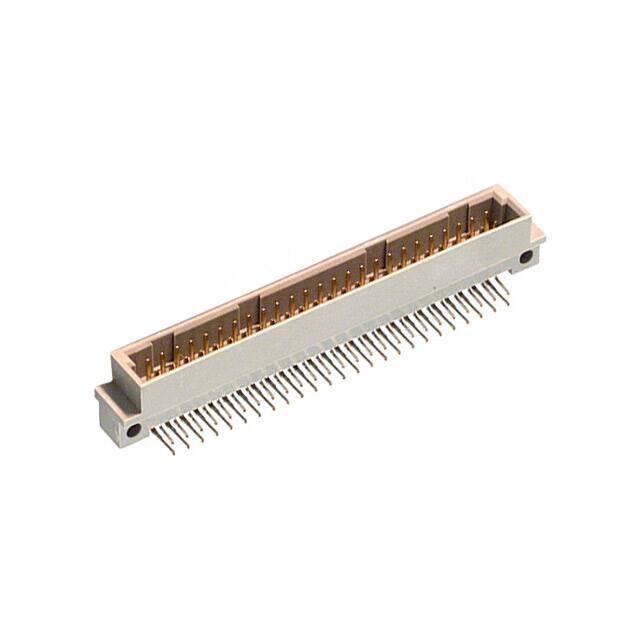

PCN10A-50P-2.54DS(72)

Teknik Özellikler

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Contact Style

SQ PIN-SKT

Body Length Or Diameter

3.001 inch

Total Number Of Contacts

50

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.339 inch

Parça Durumu

Active

Flammability Rating

UL94 V-0

Seri

PCN10

Number Of Pcb Rows

2

Contact Materials

BRASS

Sıra Sayısı

2

Pozisyon Sayısı

50

Terminal

Solder

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Material Insulation

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Connector Type

Header, Male Pins

Akım Değeri

2A

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B

Material Flammability Rating

UL94 V-0

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES
