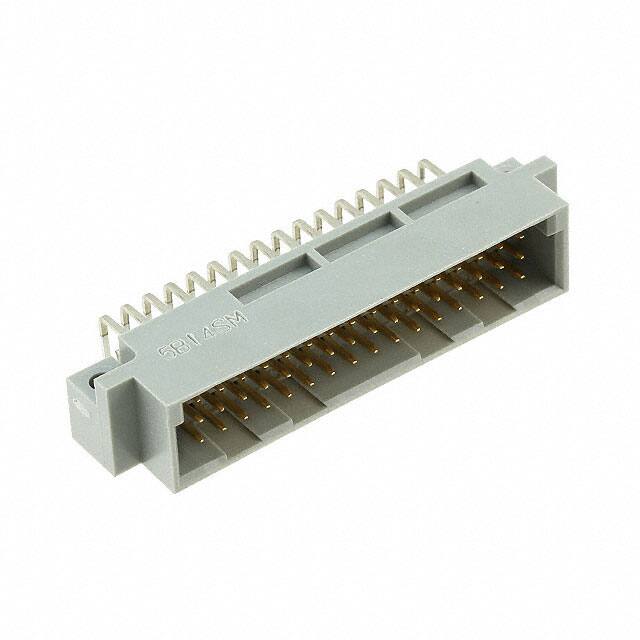

PCN10A-48P-2.54DS(72)

Teknik Özellikler

Contact Style

SQ PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

48

Polarization Key

POLARIZED HOUSING

Orientation

Right Angle

Bodyshell Style

PLUG

Mating Contact Row Spacing

0.1 inch

Plating Thickness

8μin

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Number Of Pcb Rows

3

Contact Materials

Brass

Sıra Sayısı

3

Pcb Contact Row Spacing

2.54 mm

Pozisyon Sayısı

48

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Parça Durumu

Active

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Seri

PCN10

Uzunluk

53.36mm

Çalışma Sıcaklığı

-55°C~85°C

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Max Current Rating

2A

Max Voltage Rating Ac

300V

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Depth

17.72mm

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown
