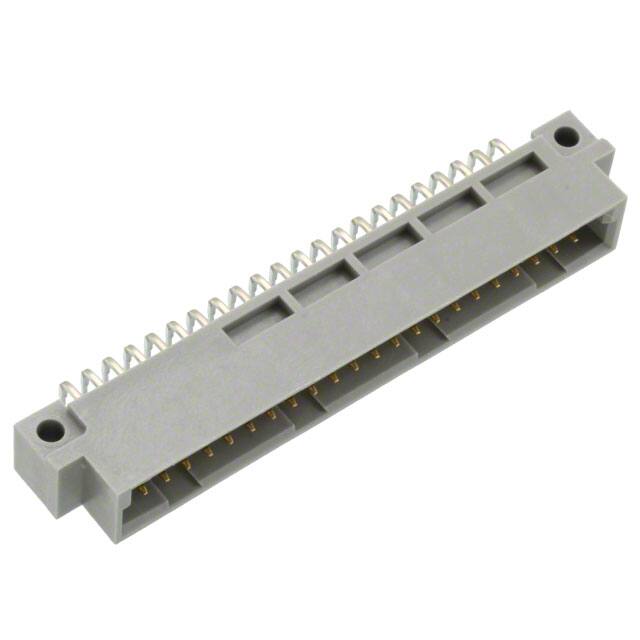

PCN10A-44P-2.54DS(72)

Teknik Özellikler

Contact Style

SQ PIN-SKT

Total Number Of Contacts

44

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Bodyshell Style

PLUG

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Number Of Pcb Rows

2

Sıra Sayısı

2

Contact Materials

BRASS

Pozisyon Sayısı

44

Body Breadth

0.339 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Seri

PCN10

Çalışma Sıcaklığı

-55°C~85°C

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Terminal

Solder

Ambalaj

Tray

Reference Standard

UL

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Akım Değeri

2A

Connector Type

Header, Male Pins

Name Of Rows Loaded

A,B

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Material Flammability Rating

UL94 V-0
