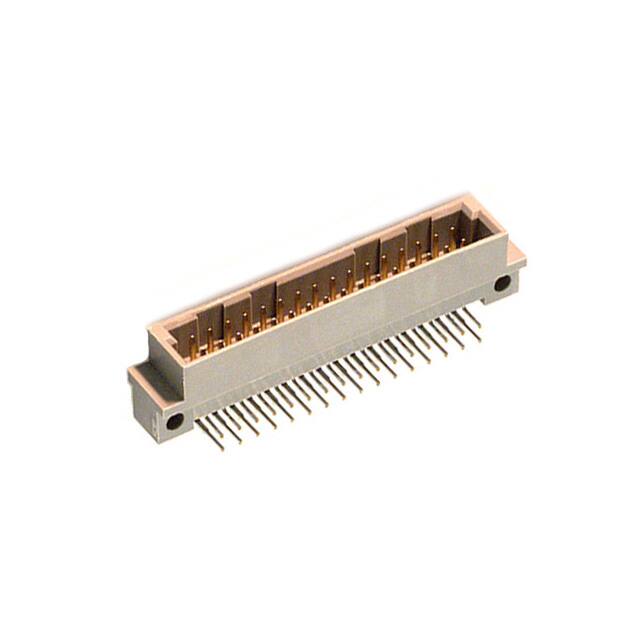

PCN10A-32P-2.54DS(72)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Total Number Of Contacts

32

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Orientation

Right Angle

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Body Breadth

0.339 inch

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

PCN10

Uzunluk

53.36mm

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Contact Materials

Brass

Sıra Sayısı

2

Pozisyon Sayısı

32

Style

B

Depth

15.24mm

Terminal

Solder

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Durability

500 Cycles

Number Of Positions Loaded

All

Max Current Rating

2A

Material Insulation

Polybutylene Terephthalate (PBT)

Max Voltage Rating Ac

300V

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Connector Type

Header, Male Pins

Akım Değeri

2A

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B

Housing Color

Grey
