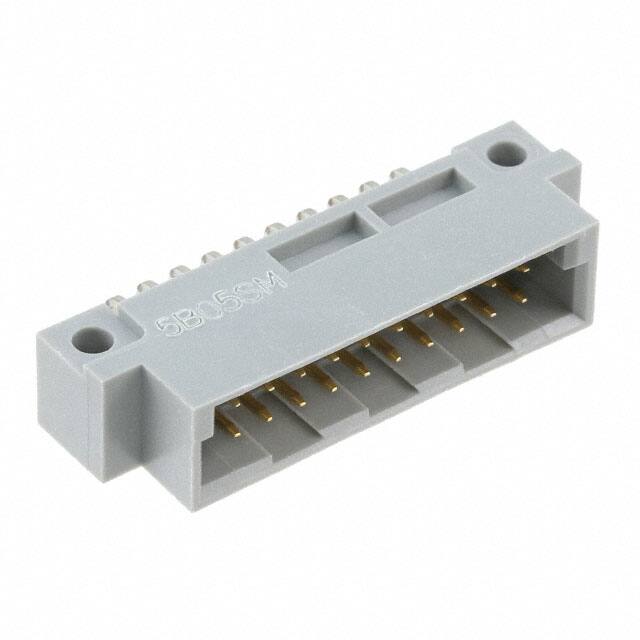

PCN10A-20P-2.54DS(72)

Teknik Özellikler

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Solder

Ambalaj

Tray

Insulator Color

GRAY

Din Conformance

YES

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Housing Material

PBT

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Connector Type

Header, Male Pins

Name Of Rows Loaded

A,B

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Total Number Of Contacts

20

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Contact Style

SQ PIN-SKT

Body Length Or Diameter

1.501 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Nominal Gerilim

300V

Pozisyon Sayısı

20

Number Of Pcb Rows

2

Sıra Sayısı

2

JESD-609 Kodu

e3

Contact Materials

Brass

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Body Breadth

0.339 inch

Flammability Rating

UL94 V-0
