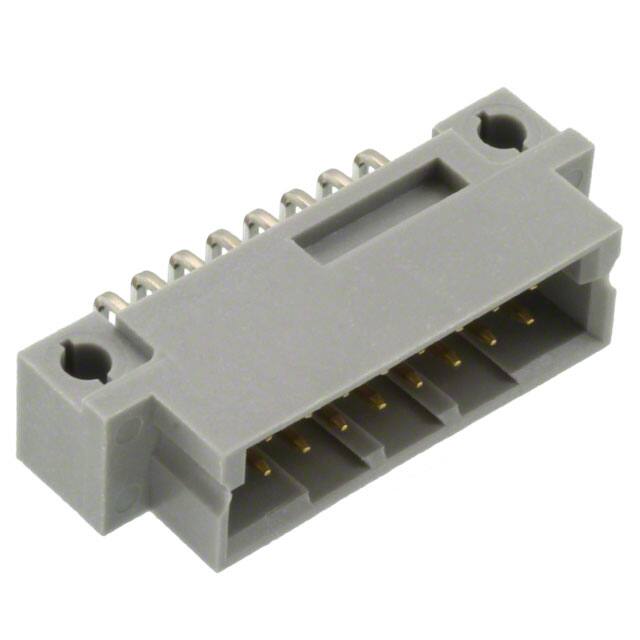

PCN10A-16P-2.54DS(72)

Teknik Özellikler

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Body Length Or Diameter

1.301 inch

Contact Style

SQ PIN-SKT

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

16

Seri

PCN10

Body Breadth

0.339 inch

Parça Durumu

Active

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Contact Materials

BRASS

Number Of Pcb Rows

2

Pozisyon Sayısı

16

Ambalaj

Tray

Terminal

Solder

Çalışma Sıcaklığı

-55°C~85°C

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Name Of Rows Loaded

A,B

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Akım Değeri

2A

Connector Type

Header, Male Pins

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Din Conformance

YES

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY
