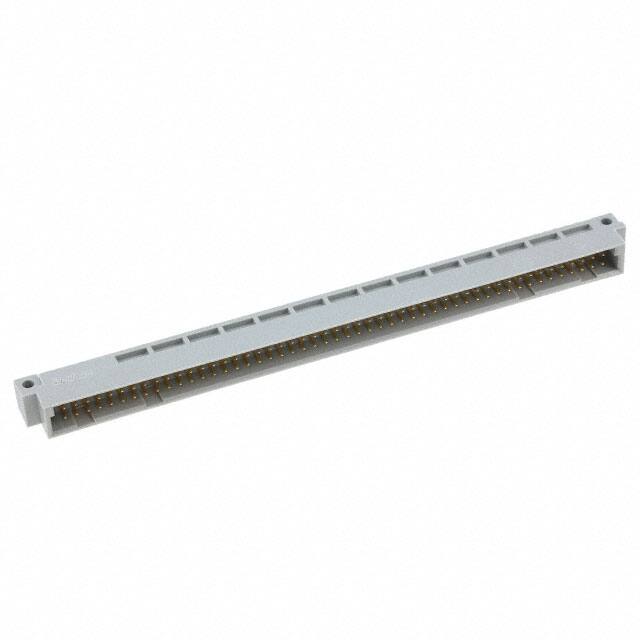

PCN10A-100P-2.54DS(72)

Teknik Özellikler

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Din Conformance

YES

Voltage Rated Ac

300V

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B

Connector Type

Header, Male Pins

Akım Değeri

2A

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Çalışma Sıcaklığı

-55°C~85°C

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Ambalaj

Tray

Terminal

Solder

Contact Materials

Brass

Sıra Sayısı

2

Number Of Pcb Rows

2

Pozisyon Sayısı

100

Seri

PCN10

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.339 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Body Length Or Diameter

5.501 inch

Contact Style

SQ PIN-SKT

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

100

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold
