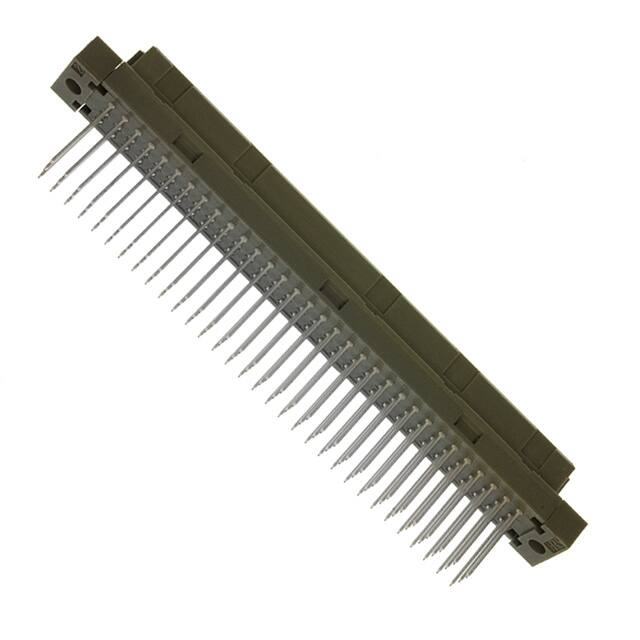

PCN10-96S-2.54WB(72)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Plating Thickness

8μin

Nominal Gerilim

300V

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

96

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

PCN10

Parça Durumu

Active

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Contact Resistance

20mOhm

Pozisyon Sayısı

96

Pcb Contact Row Spacing

2.54 mm

Sıra Sayısı

3

Number Of Pcb Rows

3

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Terminal

Wire Wrap

Style

C

RoHS Durumu

RoHS Compliant

Rated Current Signal

2A

Number Of Positions Loaded

All

Material Insulation

Polybutylene Terephthalate (PBT)

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~85°C

Housing Color

Grey

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Montaj

Through Hole

Akım Değeri

2A

Connector Type

Receptacle, Female Sockets

Din Conformance

YES

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Pitch

0.100 2.54mm
