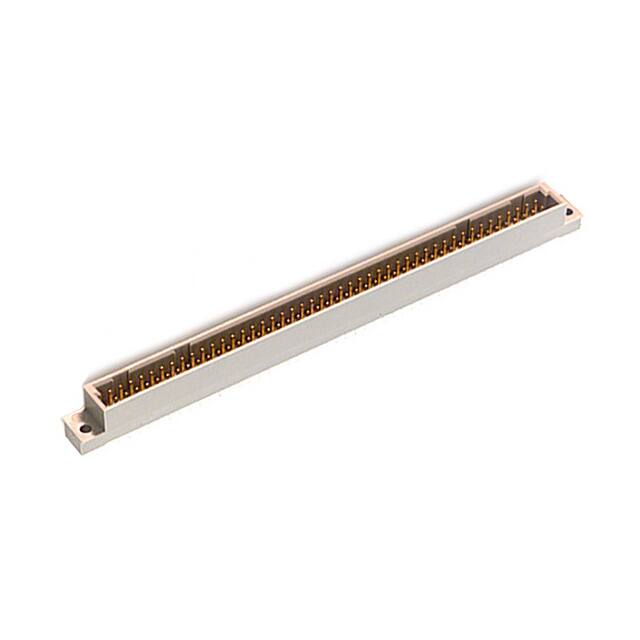

PCN10-90P-2.54DS(72)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Style

B

Yükseklik

8.9mm

Terminal

Solder

Ambalaj

Tray

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Connector Type

Header, Male Pins

Akım Değeri

2A

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B

Housing Material

PBT

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Body Length Or Diameter

5.001 inch

Total Number Of Contacts

90

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Nominal Gerilim

300V

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Contact Materials

Brass

Sıra Sayısı

2

Pozisyon Sayısı

90

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.339 inch
