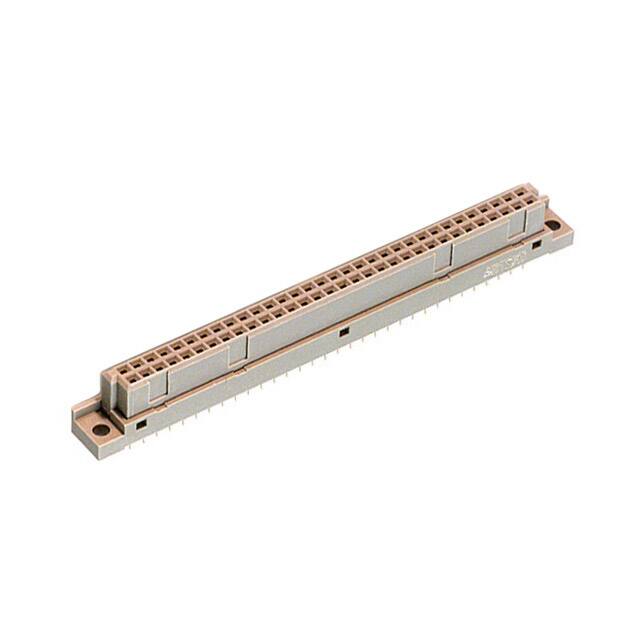

PCN10-64S-2.54DSA(72)

Teknik Özellikler

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Style

B

Depth

8.1mm

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Max Current Rating

2A

Max Voltage Rating Ac

300V

Radyasyon Dayanımı

No

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Housing Color

Grey

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle, Female Sockets

Akım Değeri

2A

Montaj

Through Hole

Name Of Rows Loaded

A,B

Insulator Color

GRAY

Din Conformance

YES

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Mating Contact Row Spacing

0.1 inch

Plating Thickness

8μin

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

64

Polarization Key

POLARIZED HOUSING

Orientation

Straight

ECCN Kodu

EAR99

Uzunluk

95mm

HTS Kodu

8536.69.40.40

Contact Resistance

20mOhm

Montaj Tipi

Through Hole
