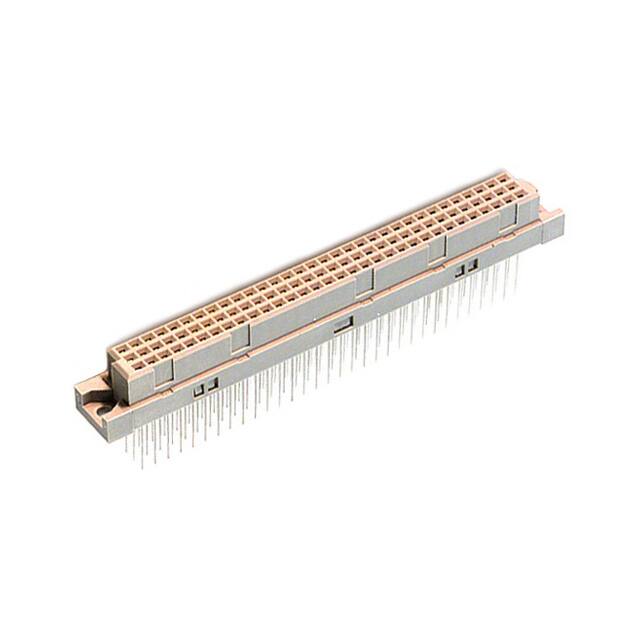

PCN10-64S-2.54C

Teknik Özellikler

Renk

Gray

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Body Breadth

0.319 inch

Seri

PCN10

Pozisyon Sayısı

64

Contact Materials

NOT SPECIFIED

Mating Contact Row Spacing

0.1 inch

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

200V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

64

Body Length Or Diameter

3.74 inch

Mixed Contacts

NO

Contact Plating

Gold

Body Depth

0.598 inch

Contact Pattern

RECTANGULAR

Connector Type

Housing for Female Sockets

Montaj

Free Hanging

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Mil Conformance

NO

Durability

500 Cycles

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-55°C

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

YES

Connector Usage

Receptacle

Sıra Sayısı

2

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Contact Style

SQ PIN-SKT

Ul Flammability Code

94V-0

Housing Material

PBT
