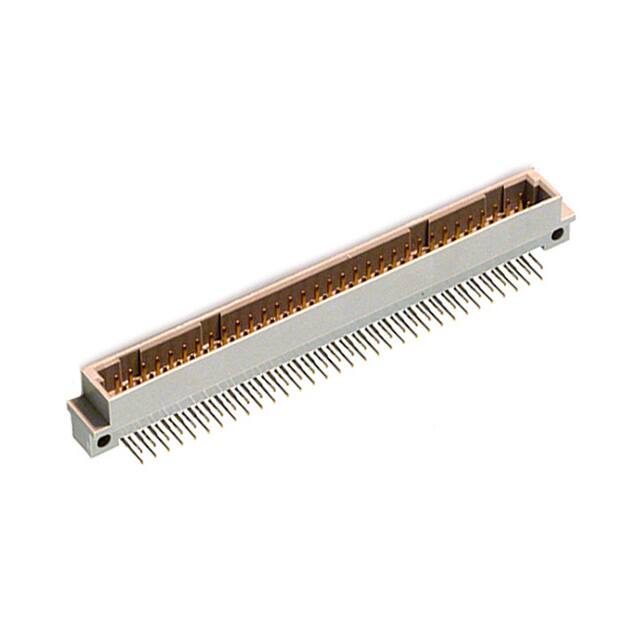

PCN10-64P-2.54DS

Teknik Özellikler

JESD-609 Kodu

e4

Sıra Sayısı

2

Number Of Pcb Rows

2

ECCN Kodu

EAR99

Iec Conformance

YES

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Contains Lead

Flammability Rating

UL94 V-0

Polarization Key

ENDS

Ul Flammability Code

94V-0

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Option

GENERAL PURPOSE

Akım Değeri

2A

RoHS Durumu

Non-RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Terminal

Solder

Pozisyon Sayısı

64

Contact Materials

Brass

HTS Kodu

8536.69.40.40

Seri

PCN10

Body Breadth

0.339 inch

Parça Durumu

Obsolete

Total Number Of Contacts

64

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Body Length Or Diameter

3.701 inch

Contact Finish

Gold

Mating Contact Row Spacing

0.1 inch

Length Termination

0.049 inch

Din Conformance

YES

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Pitch

0.100 2.54mm

Reliability

COMMERCIAL
