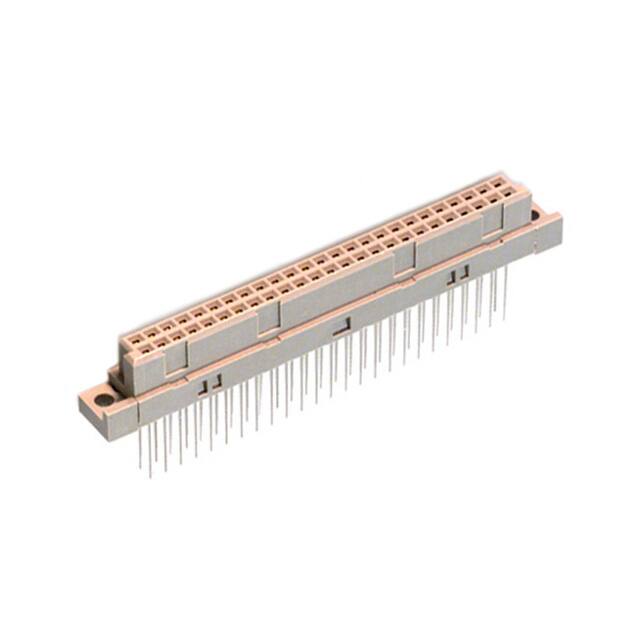

PCN10-50S-2.54WB(72)

Teknik Özellikler

Number Of Positions Loaded

All

Material Insulation

Polybutylene Terephthalate (PBT)

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Çalışma Sıcaklığı

-55°C~85°C

Kurşunsuz Kodu

yes

Terminal

Wire Wrap

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Style

B

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Voltage Rated Ac

300V

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

Housing Material

PBT

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Connector Type

Receptacle, Female Sockets

Body Depth

0.453 inch

Akım Değeri

2A

Montaj

Through Hole

Name Of Rows Loaded

A,B

Total Number Of Contacts

50

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Body Length Or Diameter

3.04 inch

Mating Contact Row Spacing

0.1 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Plating Thickness

8μin

Length Termination

0.511 inch

Pozisyon Sayısı

50

Number Of Pcb Rows

2

Sıra Sayısı

2

ECCN Kodu

EAR99
