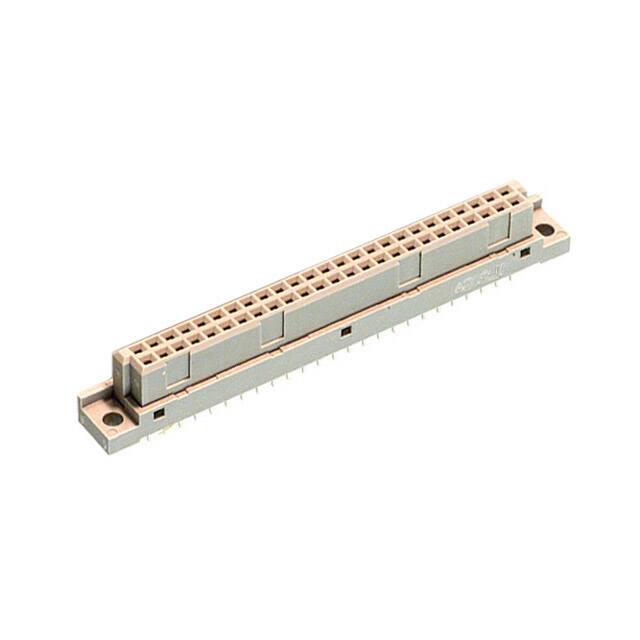

PCN10-50S-2.54DSA(72)

Teknik Özellikler

Material Insulation

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Max Voltage Rating Ac

300V

Style

B

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Connector Type

Receptacle, Female Sockets

Name Of Rows Loaded

A,B

Montaj

Through Hole

Housing Color

Grey

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

50

Orientation

Straight

Nominal Gerilim

300V

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Pozisyon Sayısı

50

Body Breadth

0.319 inch

Parça Durumu

Active

Seri

PCN10

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~85°C

Max Current Rating

2A

RoHS Durumu

RoHS Compliant

Depth

8.1mm

Terminal

Solder

Insulation Resistance

10 TΩ

Ambalaj

Tray

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

2A

Housing Material

PBT

Material Flammability Rating

UL94 V-0
