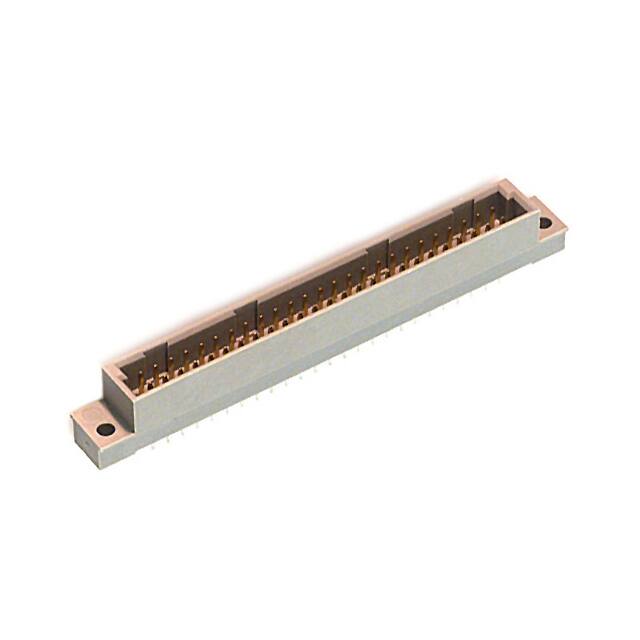

PCN10-50P-2.54DSA(72)

Teknik Özellikler

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Nominal Gerilim

300V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

50

Orientation

Straight

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Body Breadth

0.338 inch

Seri

PCN10

Pozisyon Sayısı

50

Contact Materials

Brass

Style

B

Material Insulation

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

Max Voltage Rating Ac

300V

Housing Color

Grey

Connector Type

Header, Male Pins

Name Of Rows Loaded

A,B

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Polarization Key

POLARIZED HOUSING

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Number Of Pcb Rows

2

Sıra Sayısı

2

Reach Svhc

No SVHC

Terminal

Solder
