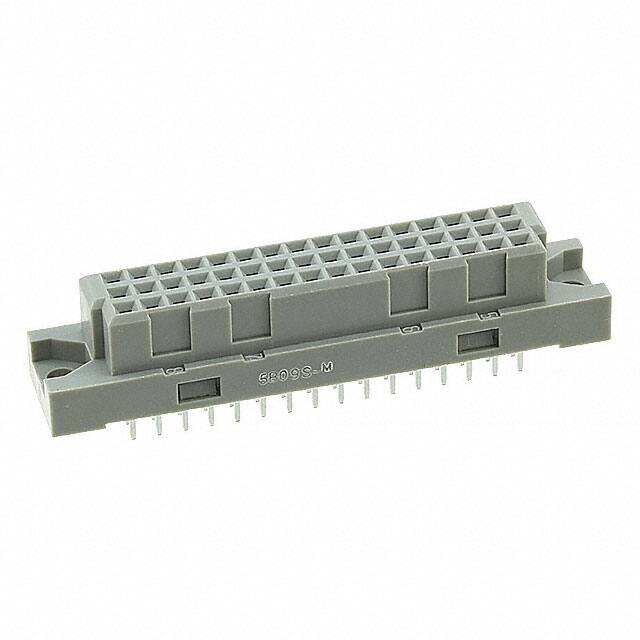

PCN10-48S-2.54DSA(72)

Teknik Özellikler

Body Length Or Diameter

2.14 inch

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

48

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

11 Weeks

Contact Finish

Gold

Plating Thickness

8μin

Mating Contact Row Spacing

0.1 inch

Sıra Sayısı

3

Contact Materials

COPPER ALLOY

Number Of Pcb Rows

3

Pozisyon Sayısı

48

Pcb Contact Row Spacing

2.54 mm

Seri

PCN10

Flammability Rating

UL94 V-0

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Resistance

20mOhm

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~85°C

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Style

C/2 (1/2 C)

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Terminal

Solder

Reference Standard

UL

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Din Conformance

YES

Insulator Color

GRAY

Name Of Rows Loaded

A,B,C

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Akım Değeri

2A

Connector Type

Receptacle, Female Sockets
