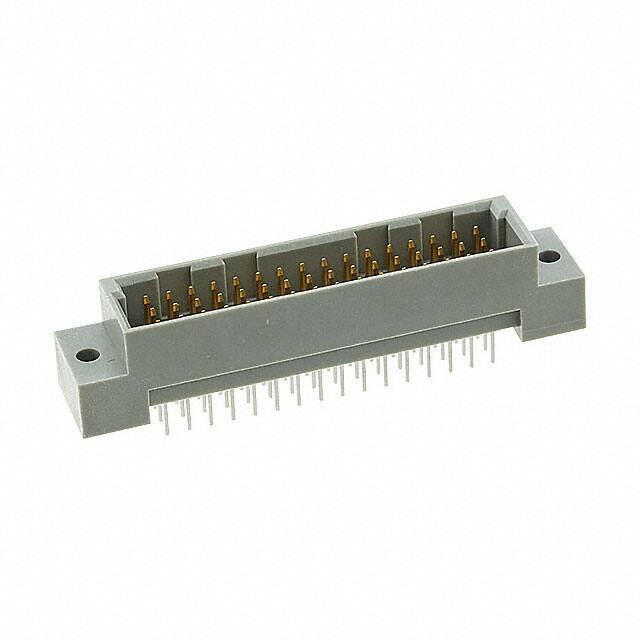

PCN10-48P-2.54DSA(72)

Teknik Özellikler

Number Of Pcb Rows

3

Contact Materials

BRASS

Sıra Sayısı

3

Pcb Contact Row Spacing

2.54 mm

Pozisyon Sayısı

48

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Flammability Rating

UL94 V-0

Parça Durumu

Active

Seri

PCN10

Contact Style

SQ PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

48

Polarization Key

POLARIZED HOUSING

Bodyshell Style

PLUG

Mating Contact Row Spacing

0.1 inch

Plating Thickness

8μin

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Connector Type

Header, Male Pins

Body Depth

0.5 inch

Akım Değeri

2A

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B,C

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~85°C

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant
