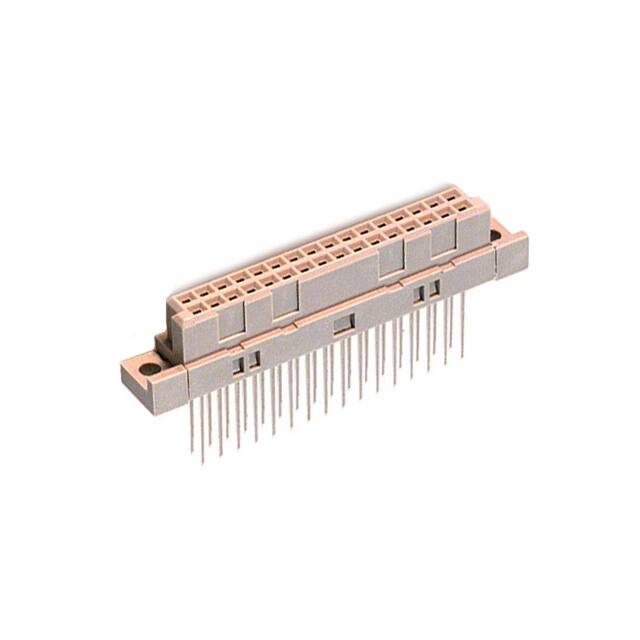

PCN10-32S-2.54WB

Teknik Özellikler

Mil Conformance

NO

Style

B

Terminal

Wire Wrap

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

Non-RoHS Compliant

Body Depth

0.453 inch

Akım Değeri

2A

Option

GENERAL PURPOSE

Connector Type

Receptacle, Female Sockets

Name Of Rows Loaded

A,B

Montaj

Through Hole

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Reference Standard

UL

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Mating Contact Row Spacing

0.1 inch

Filter Feature

NO

Contact Finish

Gold

Ul Flammability Code

94V-0

Mixed Contacts

NO

Total Number Of Contacts

32

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

ENDS

Body Breadth

0.319 inch

Flammability Rating

UL94 V-0

Kurşunsuz

Contains Lead

Parça Durumu

Obsolete
