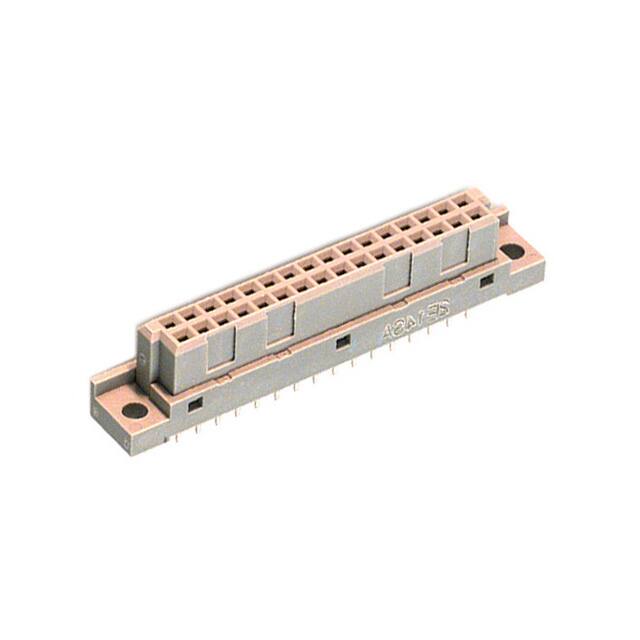

PCN10-32S-2.54DSA(72)

Teknik Özellikler

Connector Type

Receptacle, Female Sockets

Akım Değeri

2A

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B

Housing Material

PBT

Housing Color

Grey

Material Flammability Rating

UL94 V-0

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

Insulator Color

GRAY

Din Conformance

YES

Style

B

Depth

8.1mm

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Çalışma Sıcaklığı

-55°C~85°C

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Max Current Rating

2A

Number Of Positions Loaded

All

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole

Contact Resistance

20mOhm

Body Breadth

0.319 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Seri

PCN10

Uzunluk

54.36mm

Number Of Pcb Rows

2

Sıra Sayısı

2

Pozisyon Sayısı

32

Nominal Gerilim

300V
