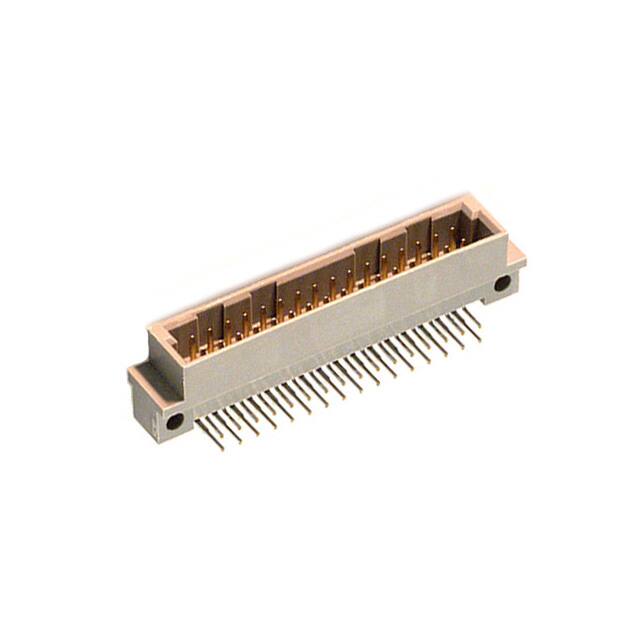

PCN10-32P-2.54DS

Teknik Özellikler

Housing Color

Grey

Body Depth

0.598 inch

Connector Type

Header, Male Pins

Name Of Rows Loaded

A,B

Montaj

Through Hole

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Mil Conformance

NO

Style

B

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

HTS Kodu

8536.69.40.40

Body Breadth

0.339 inch

Parça Durumu

Obsolete

Seri

PCN10

Pozisyon Sayısı

32

Contact Materials

Brass

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Length Termination

0.049 inch

Total Number Of Contacts

32

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Option

GENERAL PURPOSE

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

RoHS Durumu

Non-RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C
