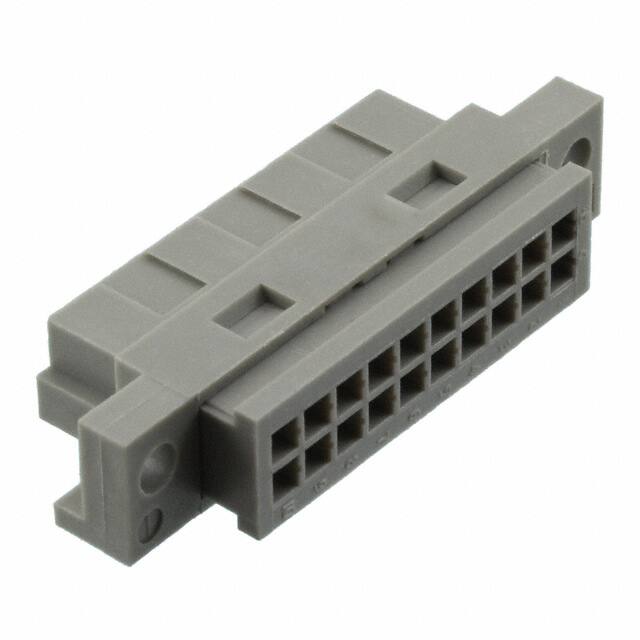

PCN10-20S-2.54C

Teknik Özellikler

Mil Conformance

NO

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes

Body Depth

0.598 inch

Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Female Sockets

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Free Hanging

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

20

Body Length Or Diameter

1.54 inch

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Body Breadth

0.319 inch

Parça Durumu

Active

Seri

PCN10

Pozisyon Sayısı

20

Terminal

Crimp

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Option

GENERAL PURPOSE

Reference Standard

UL

Filter Feature

NO
