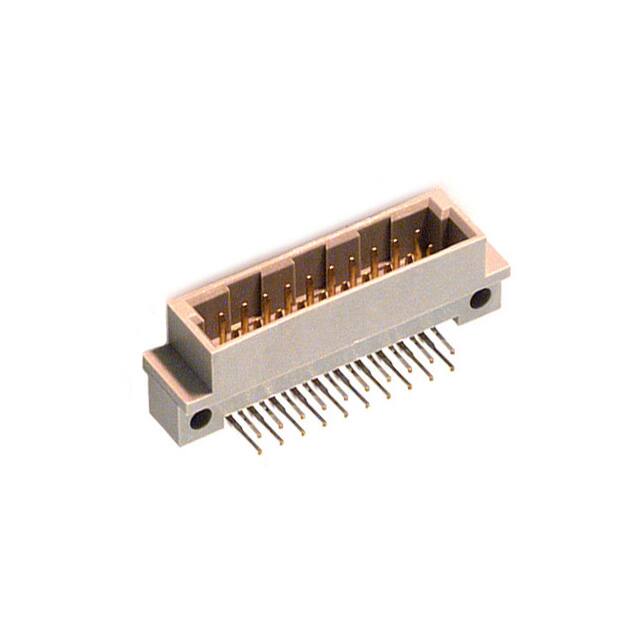

PCN10-20P-2.54DS(72)

Teknik Özellikler

Housing Material

PBT

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Terminal

Solder

Ambalaj

Tray

Depth

15.18mm

Max Current Rating

2A

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Uzunluk

38.12mm

ECCN Kodu

EAR99

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Sıra Sayısı

2

Polarization Key

POLARIZED HOUSING

Housing Color

Grey

Connector Type

Header, Male Pins

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B

Insulator Color

GRAY

Din Conformance

YES

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Style

B

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Max Voltage Rating Ac

300V

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

HTS Kodu

8536.69.40.40

Body Breadth

0.339 inch
