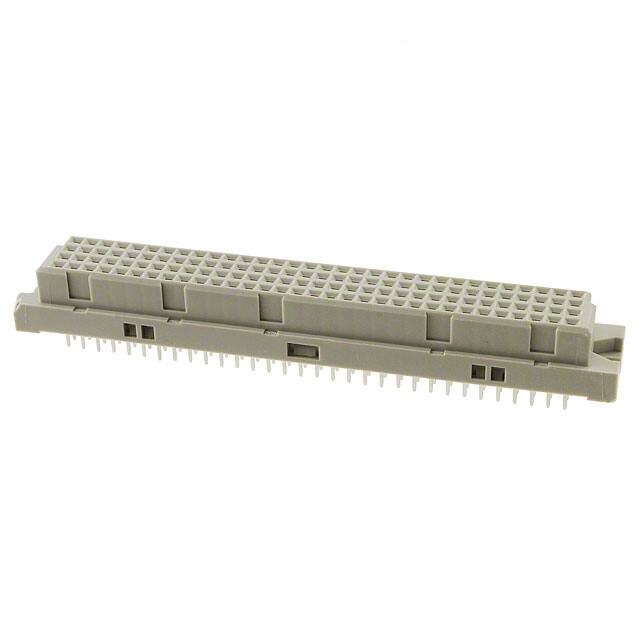

PCN10-128S-2.54DSA(72)

Teknik Özellikler

Mating Contact Row Spacing

0.1 inch

Plating Thickness

8μin

Fabrika Tedarik Süresi

10 Weeks

Contact Finish

Gold

Length Termination

0.153 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

128

Body Length Or Diameter

3.685 inch

Mixed Contacts

NO

Parça Durumu

Active

Body Breadth

0.513 inch

Seri

PCN10

Pozisyon Sayısı

128

Mil Conformance

NO

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Rated Current Signal

2A

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

1000VAC V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

no

Connector Type

Receptacle, Female Sockets

Name Of Rows Loaded

A,B,C,D

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Insulator Color

GRAY

Din Conformance

YES

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Contact Style

SQ PIN-SKT

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Iec Conformance

YES

Number Of Pcb Rows

4

Sıra Sayısı

4
