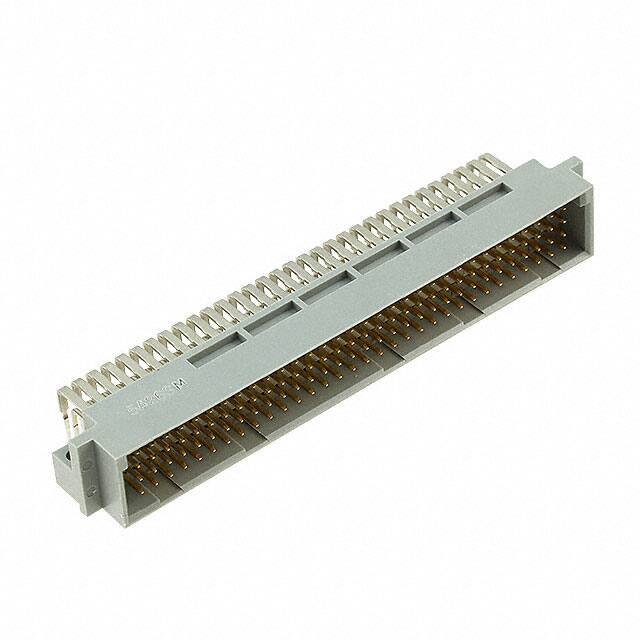

PCN10-128P-2.54DSA(72)

Teknik Özellikler

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

Radyasyon Dayanımı

No

Max Voltage Rating Ac

300V

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Din Conformance

YES

Insulator Color

GRAY

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Housing Color

Grey

Name Of Rows Loaded

A,B,C,D

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Connector Type

Header, Male Pins

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

128

Plating Thickness

8μin

Fabrika Tedarik Süresi

11 Weeks

Contact Finish

Gold

Mating Contact Row Spacing

0.1 inch

Nominal Gerilim

300V

Pozisyon Sayısı

128

Contact Materials

Brass

Seri

PCN10

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Max Current Rating

2A

Çalışma Sıcaklığı

-55°C~85°C

Insulation Resistance

1 TΩ

Ambalaj

Tray

Terminal

Solder

Depth

13.54mm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Akım Değeri

2A
