Adet bazlı fiyat
- 1+ adet$44.80
- 10+ adet$42.26
- 100+ adet$39.87
- 500+ adet$37.61
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Kurşunsuz
- Lead Free
- Fastening Type
- Snap-On
- Radyasyon Dayanımı
- No
- Mil Conformance
- NO
- Frequencymax
- 6GHz
- Body Finish
- Nickel
- Depth
- 8mm
- Number Of Ports
- 1
- Özellikler
- Internal Switch
- Insulation Materials
- POLYAMIDE6T
- Center Contact Material
- Beryllium Copper
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Cable Group
- 1.5D-HQEW
- Din Conformance
- NO
- Orientation
- Right Angle
- Ambalaj
- Bulk
- Housing Color
- Silver
- Çalışma Sıcaklığı
- -40°C~85°C
- Uzunluk
- 26.85mm
- Kurşunsuz Kodu
- yes
- Empedans
- 50Ohm
- JESD-609 Kodu
- e3
- Montaj
- Free Hanging
- Connector Style
- Coaxial Switch - 4mm Plug Dia
- Iec Conformance
- NO
- Center Contact Plating
- Gold
- Contact Materials
- Copper
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Fabrika Tedarik Süresi
- 10 Weeks
- Yayın Yılı
- 2006
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Vswr
- 1.5
- Contact Termination
- Solder
- Additional Feature
- LOW PROFILE
- Body Material
- Phosphor Bronze
- Seri
- MS-156C
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- RoHS Durumu
- RoHS Compliant
- Includes

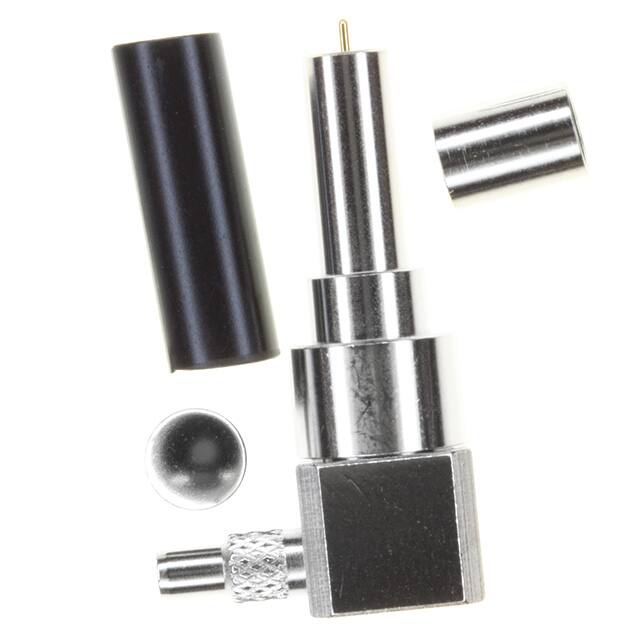

- 3 pcs - 1 Connector, 1 Ferrule, 1 Heat Shrink
- Mating Cycles
- 500
