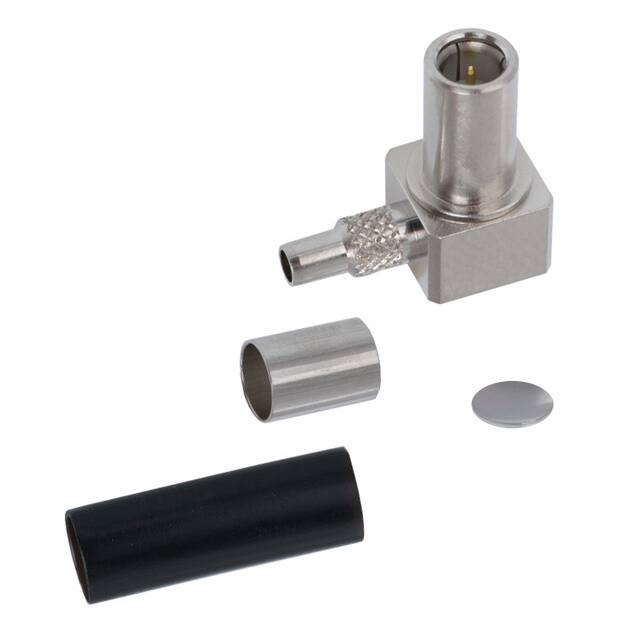

MS-147-C(LP)-1

Teknik Özellikler

Reach Svhc

No SVHC

Gender

Male

Insulation Resistance

1GOhm

Option

GENERAL PURPOSE

Connector Type

Plug, Male Pin

Insertion Loss

0.4 dB

Reference Standard

UL

Filter Feature

NO

Shield Termination

Crimp

Includes

2 pcs - 1 Connector, 1 Heat Shrink

Contact Materials

Bronze, Copper

Body Depth

0.539 inch

Yayın Yılı

2003

Connector Style

Coaxial Switch - 4.8mm Plug Dia

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vswr

1.5

Contact Termination

Solder

Empedans

50Ohm

Body Breadth

0.276 inch

Contact Resistance

75mOhm

Montaj

Cable, Free Hanging

JESD-609 Kodu

e4

Ambalaj

Bulk

Cable Group

1.5D-HQEW

Din Conformance

NO

Çalışma Sıcaklığı

-30°C~85°C

Number Of Ports

1

Özellikler

Internal Switch

Fastening Type

Snap-On

Kurşunsuz

Lead Free

Genişlik

13.6mm

Frekans

6GHz

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Free Hanging (In-Line), Right Angle

Body Material

Phosphor Bronze

Seri

MS-147

Mating Cycles

12000

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

10 Weeks
