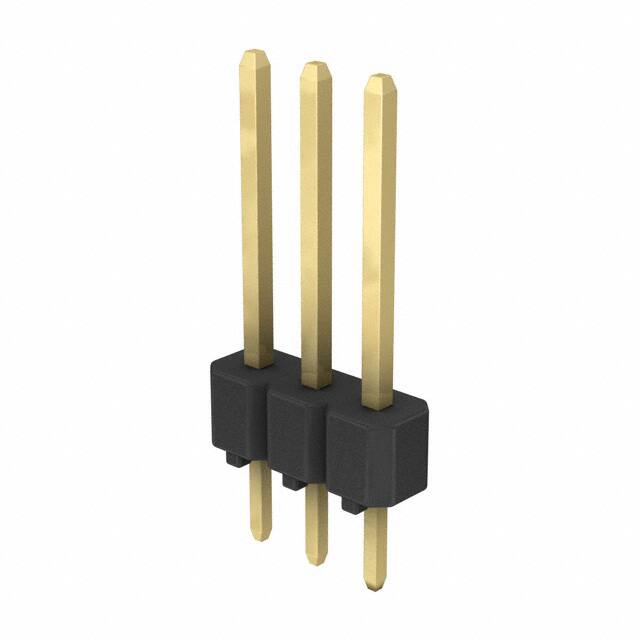

MDF7P-3P-2.54DSA(01)

Teknik Özellikler

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-35°C~85°C

Parça Durumu

Active

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Connector Type

Header

Din Conformance

NO

Terminal Adımı

2.54mm

Dielectric Withstanding Voltage

650VAC V

Contact Finish Thickness Mating

8.00μin 0.203μm

Option

GENERAL PURPOSE

Insulation Materials

Polybutylene Terephthalate (PBT)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Ambalaj

Bulk

Montaj Tipi

Through Hole

Mixed Contacts

NO

Sıra Sayısı

1

Number Of Conductors

ONE

Shrouding

Unshrouded

Overall Contact Length

0.710 18.03mm

Contact Lengthmating

0.492 12.50mm

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Durability

50 Cycles

ECCN Kodu

EAR99

Contact Length Post

0.118 3.00mm

Contact Type

Male Pin

Filter Feature

NO

Current Rating Amps

3A

Ul Flammability Code

94V-0

Style

Board to Board

Number Of Positions Loaded

All

Reference Standard

UL

Montaj

Through Hole

Insulation Height

0.100 2.54mm

Additional Feature

W/O LOCATOR, PIN LENGTH=0.492"

Contact Materials

Brass
