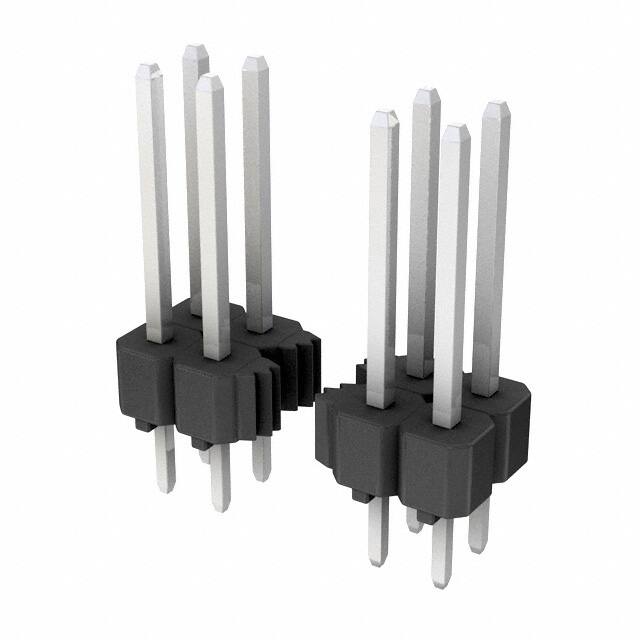

MDF7P-26DP-2.54DSA(55)

Teknik Özellikler

Fastening Type

Push-Pull

Contact Shape

Square

Nominal Gerilim

250V

JESD-609 Kodu

e3

Iec Conformance

NO

Seri

MDF7

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Insulation Height

0.100 2.54mm

Contact Materials

Brass

Filter Feature

NO

Current Rating Amps

3A

Mating Contact Pitch

0.1 inch

Contact Resistance

30mOhm

Ul Flammability Code

94V-0

Style

Board to Board

Number Of Positions Loaded

All

Reference Standard

UL

Montaj

Through Hole

Body Depth

0.1 inch

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Conductors

ONE

Shrouding

Unshrouded

Overall Contact Length

0.710 18.03mm

Contact Lengthmating

0.492 12.50mm

Mixed Contacts

NO

Montaj Tipi

Through Hole

Length Termination

0.118 inch

Sıra Sayısı

2

Contact Length Post

0.118 3.00mm

Body Length Or Diameter

1.3 inch

Contact Type

Male Pin

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Durability

30 Cycles

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Tin

Din Conformance

NO
