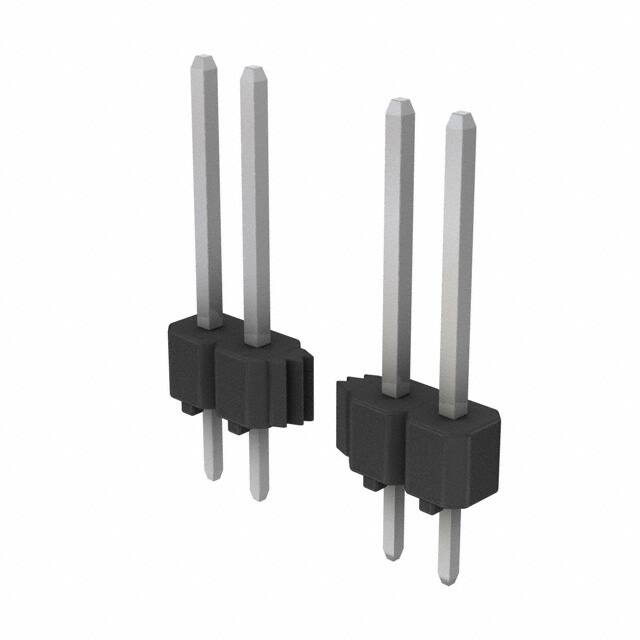

MDF7P-19P-2.54DSA(55)

Teknik Özellikler

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

no

Seri

MDF7

JESD-609 Kodu

e3

Iec Conformance

NO

Nominal Gerilim

250V

Contact Shape

Square

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Mil Conformance

NO

Montaj

Through Hole

Reference Standard

UL

Number Of Positions Loaded

All

Style

Board to Board

Contact Resistance

30mOhm

Ul Flammability Code

94V-0

Filter Feature

NO

Current Rating Amps

3A

Contact Materials

Brass

Insulation Height

0.100 2.54mm

Durability

30 Cycles

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Contact Type

Male Pin

Contact Length Post

0.118 3.00mm

Sıra Sayısı

1

Mixed Contacts

NO

Montaj Tipi

Through Hole

Contact Lengthmating

0.492 12.50mm

Overall Contact Length

0.710 18.03mm

Shrouding

Unshrouded

Number Of Conductors

ONE

Insulation Materials

Polybutylene Terephthalate (PBT)

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

39.4μin 1.00μm

Dielectric Withstanding Voltage

650VAC V

Terminal Adımı

2.54mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder
