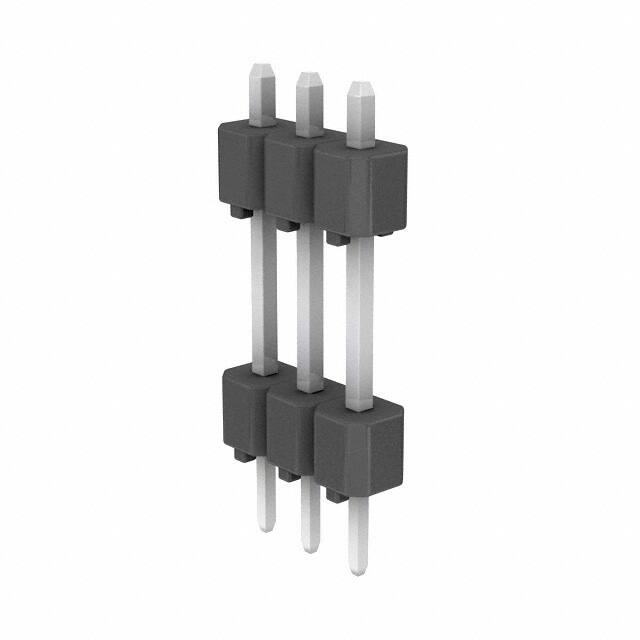

MDF7B-3P-2.54DSA(55)

Teknik Özellikler

Style

Board to Board

Contact Shape

Square

Contact Length Post

0.118 3.00mm

Insulation Color

Black

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Material Flammability Rating

UL94 V-0

Nominal Gerilim

250V

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Sıra Sayısı

1

Iec Conformance

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Pozisyon Sayısı

3

Din Conformance

NO

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Type

Male Pin

Number Of Conductors

ONE

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Çalışma Sıcaklığı

-35°C~85°C

Terminal

Solder

Seri

MDF7

Current Rating Amps

3A

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

39.4μin 1.00μm

Montaj Tipi

Through Hole

Mil Conformance

NO

Shrouding

Unshrouded

Number Of Positions Loaded

All

Montaj

Through Hole

Connector Type

Header

Reference Standard

UL

Contact Lengthmating

0.648 16.47mm

Terminal Adımı

2.54mm

ECCN Kodu

EAR99

Overall Contact Length

0.867 22.01mm
