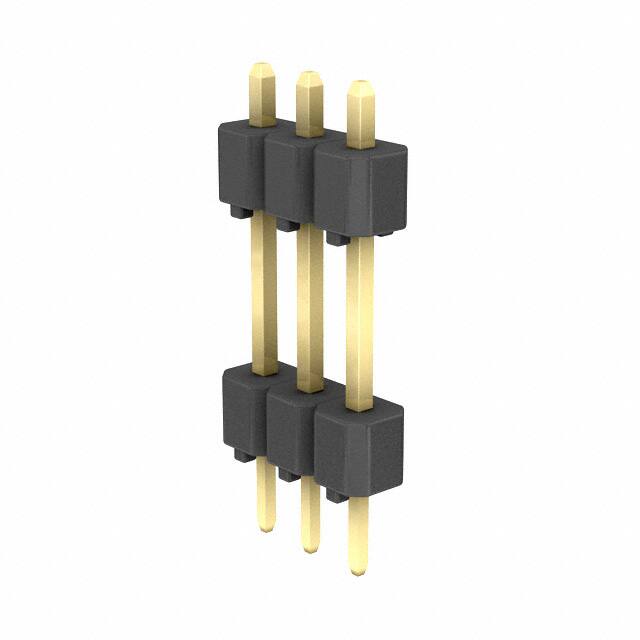

MDF7B-3P-2.54DSA(01)

Teknik Özellikler

Contact Finish Mating

Gold

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Terminal Adımı

2.54mm

Montaj

Through Hole

Connector Type

Header

Number Of Pcb Rows

1

Montaj Tipi

Through Hole

Seri

MDF7

Terminal

Solder

Ambalaj

Bulk

Durability

50 Cycles

Contact Type

Male Pin

Number Of Conductors

ONE

Sıra Sayısı

1

Pozisyon Sayısı

3

Insulation Materials

Polybutylene Terephthalate (PBT)

Dielectric Withstanding Voltage

650VAC V

Filter Feature

NO

Contact Shape

Square

Mixed Contacts

NO

Insulation Height

0.100 2.54mm

Overall Contact Length

0.867 22.01mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Lengthmating

0.648 16.47mm

Number Of Positions Loaded

All

Shrouding

Unshrouded

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Current Rating Amps

3A

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-35°C~85°C

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Reliability

COMMERCIAL
