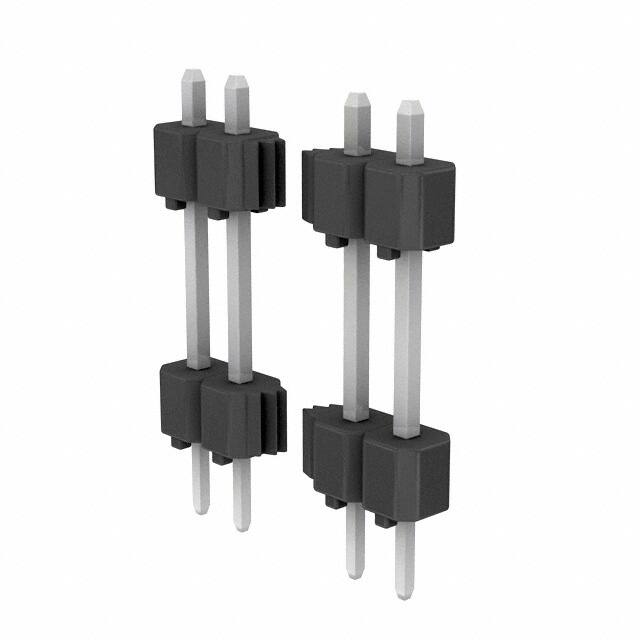

MDF7B-20P-2.54DSA(55)

Teknik Özellikler

Contact Finish Thickness Mating

39.4μin 1.00μm

Montaj Tipi

Through Hole

Montaj

Through Hole

Connector Type

Header

Ambalaj

Bulk

Durability

30 Cycles

Seri

MDF7

Terminal

Solder

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Terminal Adımı

2.54mm

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Contact Shape

Square

Contact Type

Male Pin

Number Of Conductors

ONE

Sıra Sayısı

1

Insulation Materials

Polybutylene Terephthalate (PBT)

Pozisyon Sayısı

20

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Shrouding

Unshrouded

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-35°C~85°C

Current Rating Amps

3A

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

JESD-609 Kodu

e3

Mixed Contacts

NO

Insulation Height

0.100 2.54mm

Reference Standard

UL

Contact Lengthmating

0.648 16.47mm

Overall Contact Length

0.867 22.01mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Nominal Gerilim

250V

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Style

Board to Board
