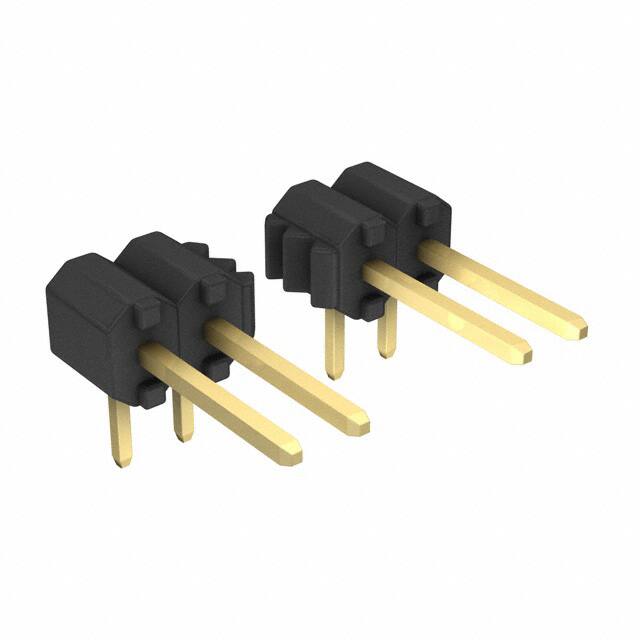

MDF7-8P-2.54DS(56)

Teknik Özellikler

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Gold

Terminal Adımı

2.54mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Connector Type

Header

Durability

50 Cycles

Ambalaj

Bulk

Terminal

Solder

Seri

MDF7

Contact Type

Male Pin

Number Of Conductors

ONE

Sıra Sayısı

1

Insulation Materials

Polybutylene Terephthalate (PBT)

Pozisyon Sayısı

8

Dielectric Withstanding Voltage

650VAC V

Filter Feature

NO

Contact Shape

Square

Mixed Contacts

NO

Insulation Height

0.157 4.00mm

Reference Standard

UL

Contact Lengthmating

0.292 7.42mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Shrouding

Unshrouded

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-35°C~85°C

Current Rating Amps

3A

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

JESD-609 Kodu

e4

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Iec Conformance

NO

Contact Resistance

30mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE
