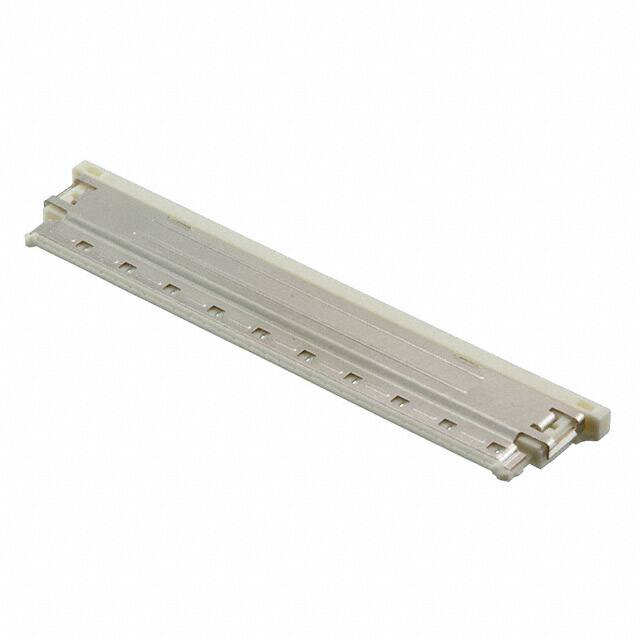

MDF76-30P-1C

Teknik Özellikler

Yayın Yılı

2017

Operating Temperature Max

85°C

Kurşunsuz Kodu

yes

Orientation

Straight

Rated Current Signal

1A

Contact Type

Non-Gendered

Din Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

40mOhm

Pitch

0.039 1.00mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

30

Iec Conformance

NO

Sıra Sayısı

1

Insulation Resistance

100MOhm

Ul Flammability Code

94V-0

Nominal Gerilim

200V

Option

GENERAL PURPOSE

Filter Feature

NO

Dielectric Withstanding Voltage

500VAC V

Contact Plating

Gold

Note

Contacts Not Included

Total Number Of Contacts

30

Additional Feature

EMI SHIELDED

Contact Termination

Crimp

Mixed Contacts

NO

Contact Finish Mating

TIN

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Reference Standard

UL

Connector Type

Plug

Contact Gender

Male

Operating Temperature Min

-40°C

Montaj

Free Hanging

Renk

Beige

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Fabrika Tedarik Süresi

11 Weeks
