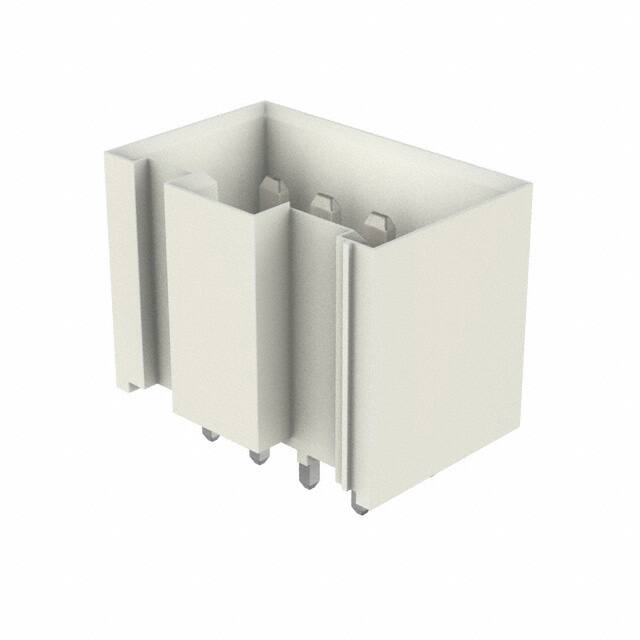

MDF6-8DP-3.5DSA(05)

Teknik Özellikler

Wire Gauge Min

22 AWG

Seri

MDF6

Terminal

Solder

Ambalaj

Bulk

Contact Gender

Male

Connector Type

Header

Montaj

Through Hole

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

39.4μin 1.00μm

Terminal Adımı

3.5mm

Radyasyon Dayanımı

No

Contact Finish Mating

Tin-Copper

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Filter Feature

NO

Contact Plating

Copper, Tin

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

8

Sıra Sayısı

2

Contact Type

Male Pin

Housing Material

Polyamide

Contact Materials

Brass

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-30°C~85°C

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Contact Lengthmating

0.220 5.59mm

Insulation Height

0.512 13.00mm

Mixed Contacts

NO

Wire Gauge Max

16 AWG

Insulation Color

White

Contact Length Post

0.138 3.50mm

Style

Board to Cable/Wire

Option

GENERAL PURPOSE

Nominal Gerilim

300V
