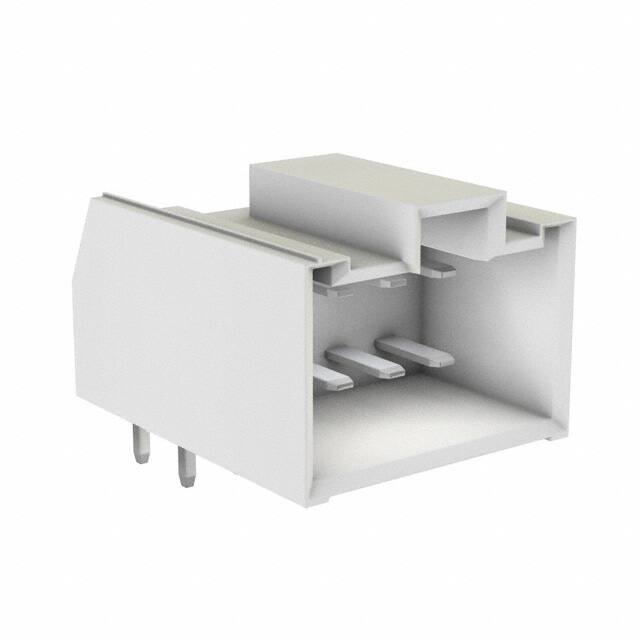

MDF6-8DP-3.5DS(05)

Teknik Özellikler

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Montaj

Through Hole

Montaj Tipi

Through Hole, Right Angle

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

39.4μin 1.00μm

JESD-609 Kodu

e3

Contact Materials

Brass

Housing Material

Polyamide

REACH Uyumluluk Kodu

unknown

Terminal

Solder

Seri

MDF6

Çalışma Sıcaklığı

-35°C~85°C

Ambalaj

Bulk

Insulation Height

0.445 11.30mm

Contact Finish Mating

Tin-Copper

Mixed Contacts

NO

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

3.5mm

Contact Lengthmating

0.220 5.59mm

Option

GENERAL PURPOSE

Nominal Gerilim

300V

Ul Flammability Code

94V-0

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Akım Değeri

7A

Contact Plating

Copper, Tin

Voltage Rated Ac

30V

Insulation Color

White

Contact Shape

Square

Contact Length Post

0.138 3.50mm

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Row Spacing Mating

0.197 (5.00mm)

Pitch Mating

0.138 3.50mm

Fastening Type

Latch Holder
