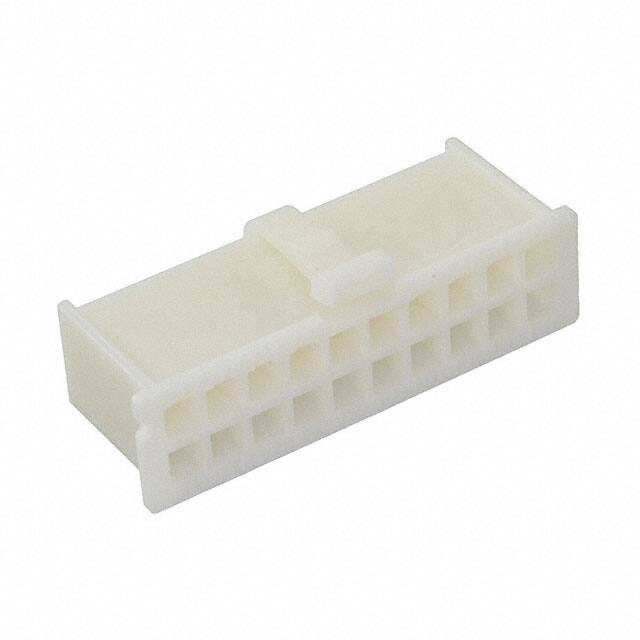

MDF6-20DS-3.5C

Teknik Özellikler

Insulation Materials

POLYAMIDE

Iec Conformance

NO

Pozisyon Sayısı

20

Sıra Sayısı

2

Insulation Resistance

1000000000Ohm

Reliability

COMMERCIAL

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch

0.138 3.50mm

Contact Resistance

30mOhm

Number Of Conductors

ONE

Contact Type

Female Socket

Fastening Type

Latch Lock

Operating Temperature Max

85°C

Kurşunsuz Kodu

yes

Note

Contacts Not Included

Contact Termination

Crimp

Total Number Of Contacts

20

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing

0.197 (5.00mm)

ECCN Kodu

EAR99

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Mating

TIN

Mixed Contacts

NO

Ambalaj

Bulk

Contact Materials

COPPER ALLOY

REACH Uyumluluk Kodu

unknown

JESD-609 Kodu

e3

HTS Kodu

8536.69.40.40

Seri

MDF6

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Renk

White

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Socket
