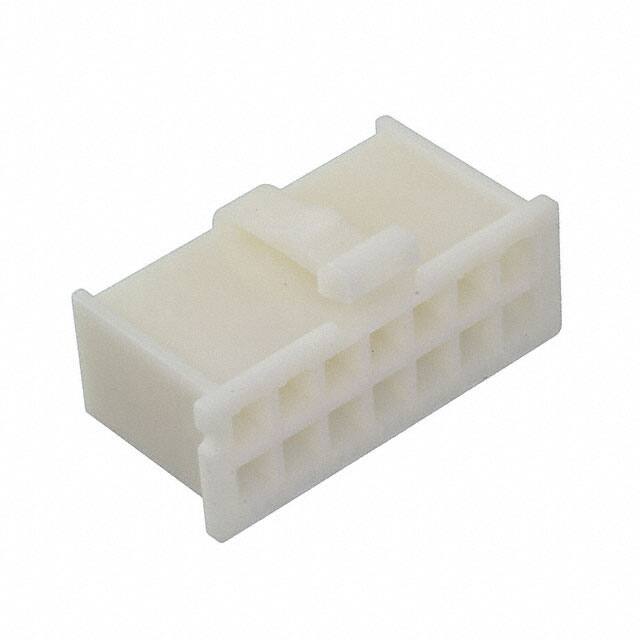

MDF6-14DS-3.5C

Teknik Özellikler

Filter Feature

NO

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Nominal Gerilim

300V

Contact Plating

Tin

Total Number Of Contacts

14

Contact Termination

Crimp

Note

Contacts Not Included

Kurşunsuz Kodu

yes

Operating Temperature Max

85°C

Contact Type

Female Socket

Fastening Type

Latch Lock

Number Of Conductors

ONE

Contact Resistance

30mOhm

Pitch

0.138 3.50mm

Din Conformance

NO

Reliability

COMMERCIAL

Sıra Sayısı

2

Insulation Resistance

1000000000Ohm

Pozisyon Sayısı

14

Iec Conformance

NO

Operating Temperature Min

-30°C

Montaj

Free Hanging

Connector Type

Socket

Contact Gender

Female

Fabrika Tedarik Süresi

10 Weeks

Renk

White

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Seri

MDF6

JESD-609 Kodu

e3

Contact Materials

Bronze

Housing Material

Polyamide

REACH Uyumluluk Kodu

unknown

Ambalaj

Bulk

Mixed Contacts

NO

Contact Finish Mating

TIN

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Row Spacing

0.197 (5.00mm)
