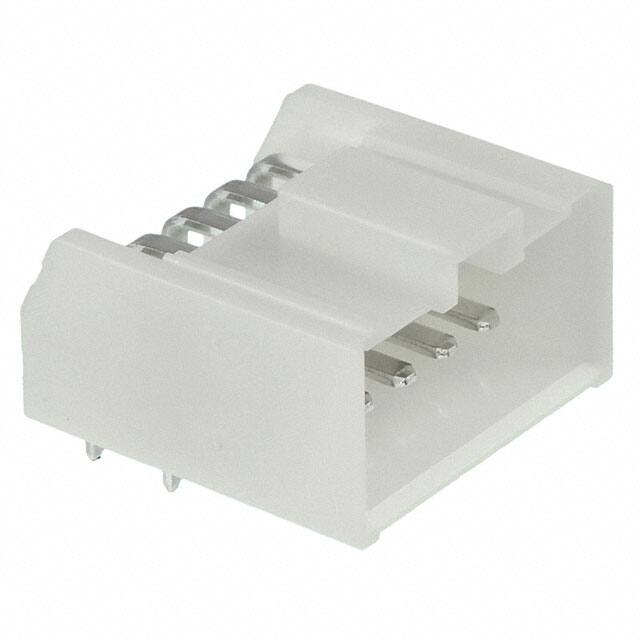

MDF6-10DP-3.5DS(05)

Teknik Özellikler

Filter Feature

NO

Contact Plating

Copper, Tin

Voltage Rated Ac

300V

Contact Shape

Square

Contact Type

Male Pin

Sıra Sayısı

2

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

10

Montaj

Through Hole

Connector Type

Header

Contact Gender

Male

Contact Finish Thickness Mating

39.4μin 1.00μm

Montaj Tipi

Through Hole, Right Angle

Seri

MDF6

Terminal

Solder

HTS Kodu

8536.69.40.40

Ambalaj

Bulk

Contact Finish Mating

Tin-Copper

Parça Durumu

Active

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Terminal Adımı

3.5mm

Material Flammability Rating

UL94 V-0

Akım Değeri

7A

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Contact Length Post

0.138 3.50mm

Insulation Color

White

Style

Board to Cable/Wire

Pitch Mating

0.138 3.50mm

Kurşunsuz Kodu

yes

Row Spacing Mating

0.197 (5.00mm)

Fastening Type

Latch Holder

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Insulation Resistance

1GOhm

Iec Conformance

NO

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks
