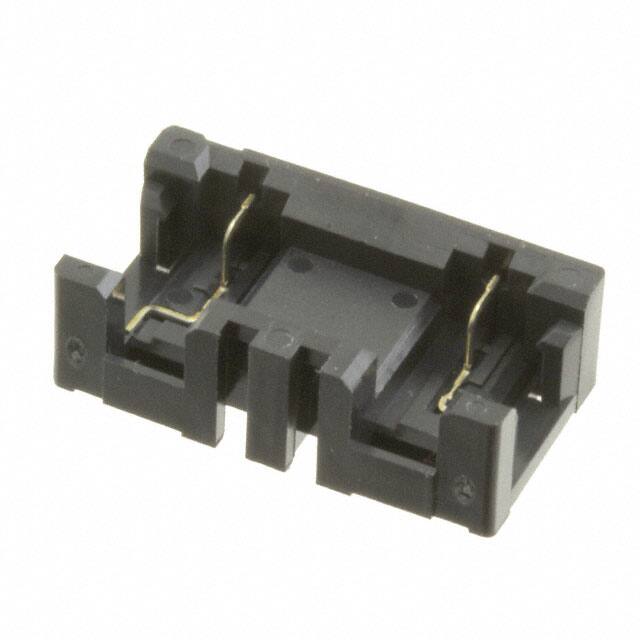

MDF51K-2P-12DSA(20)

Teknik Özellikler

Contact Type

Male Blade

Fastening Type

Detent Lock

Kurşunsuz Kodu

yes

Yayın Yılı

2014

Özellikler

Board Guide

Pitch Mating

0.472 12.00mm

Iec Conformance

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Pozisyon Sayısı

2

Sıra Sayısı

1

Din Conformance

NO

Nominal Gerilim

3000V

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Insulation Color

Black

Contact Shape

Rectangular

Contact Length Post

0.110 2.79mm

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Insulation Height

0.266 6.76mm

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Montaj

Through Hole

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-35°C~85°C

Ambalaj

Tray

JESD-609 Kodu

e3

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Terminal

Solder

Current Rating Amps

1A

Seri

MDF51
