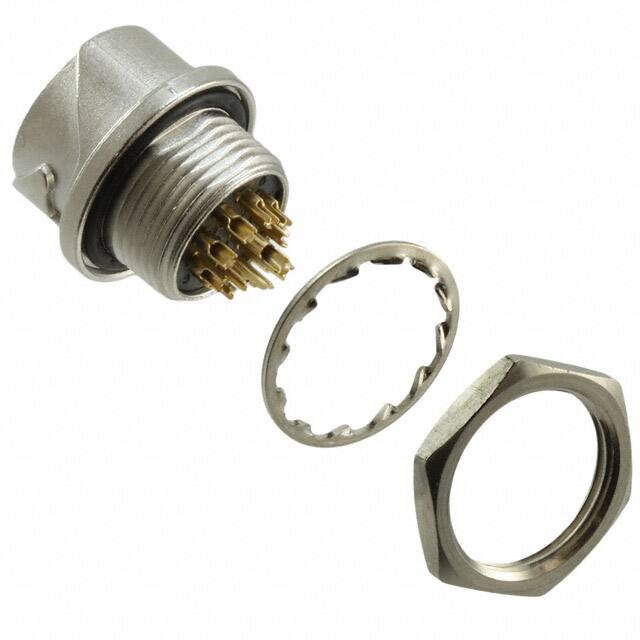

LF10WBR-12S

Teknik Özellikler

Coupling Type

THREADED

Connector Type

Receptacle, Female Sockets

Wirecable Gauge

26 AWG

Filter Feature

NO

Reach Svhc

No SVHC

Shell Finish

Nickel

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Gender

Receptacle

Yayın Yılı

2011

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

Phosphor Bronze

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Din Conformance

NO

Ambalaj

Tray

Çalışma Sıcaklığı

-25°C~85°C

Insert Material

Polyphenylene Sulfide (PPS)

Wirecable Diameter

7.3 mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Montaj

Bulkhead, Cable, Panel, Rear Side Nut

JESD-609 Kodu

e4

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Fastening Type

Bayonet Lock

Backshell Type

SOLID

Terminal

Solder Cup

Renk

Silver

Özellikler

Shielded

Empty Shell

NO

Mounting Feature

Bulkhead - Rear Side Nut

Voltage Rated Ac

30V

Parça Durumu

Active

Contact Finish Mating

Gold

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

12

Seri

LF

Voltage Rated Dc

42V

Montaj Tipi

Panel Mount
