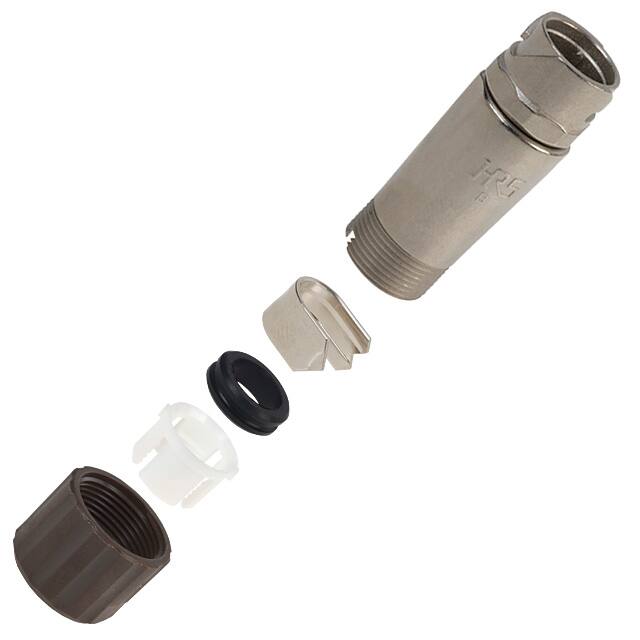

LF10WBJ-4P

Teknik Özellikler

Backshell Material Plating

Zinc Alloy, Nickel

Shell Material

Zinc Alloy

Applications

Industrial, Telecommunications

Orientation

Keyed

Contact Gender

Male

Insulation Materials

Plastic

Shell Size Insert

10

Pozisyon Sayısı

4

Mil Conformance

NO

Contact Finish Mating

Gold

Shielding

Shielded

Parça Durumu

Active

Empty Shell

NO

Voltage Rated Ac

125V

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Ratings

Dust Tight, IP67, IP68, Waterproof

Voltage Rated Dc

125V

Seri

LF

Montaj Tipi

Free Hanging (In-Line)

Total Number Of Contacts

4

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Contact Finish Thickness Mating

8.00μin 0.203μm

Wirecable Diameter

7.3 mm

Montaj

Cable, Free Hanging

Insert Material

Polyphenylene Sulfide (PPS)

Çalışma Sıcaklığı

-25°C~85°C

Din Conformance

NO

Ambalaj

Tray

Özellikler

Backshell, Clamp, Strain Relief

Renk

Brown, Silver

Backshell Type

SOLID

Terminal

Solder Cup

Kurşunsuz

Lead Free

Fastening Type

Bayonet Lock

Radyasyon Dayanımı

No

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Gender

Receptacle
