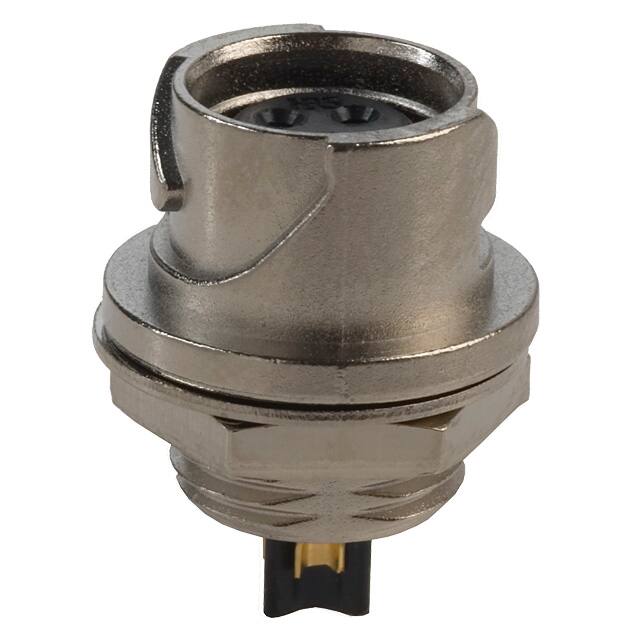

LF07WBR-3S

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Gender

Receptacle

Contact Finish Mating

Gold

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Shell Finish

Nickel

Parça Durumu

Active

Voltage Rated Ac

125V

Mounting Feature

Bulkhead - Rear Side Nut

ECCN Kodu

EAR99

Empty Shell

NO

Filter Feature

NO

Connector Type

Receptacle, Female Sockets

Coupling Type

THREADED

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Montaj Tipi

Panel Mount

Seri

LF

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

3

Akım Değeri

5A

Iec Conformance

NO

Contact Materials

Copper Alloy

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

12 Weeks

Yayın Yılı

2005

Shell Material

Zinc Alloy

Contact Finish Thickness Mating

8.00μin 0.203μm

Insert Material

Polyphenylene Sulfide (PPS)

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Keyed

Ambalaj

Bulk

Nominal Gerilim

125VAC 175VDC

Din Conformance

NO

Applications

Industrial, Telecommunications

Shell Size Insert

7

Insulation Materials

Plastic

Renk

Silver

Pozisyon Sayısı

3

Terminal

Solder Cup
