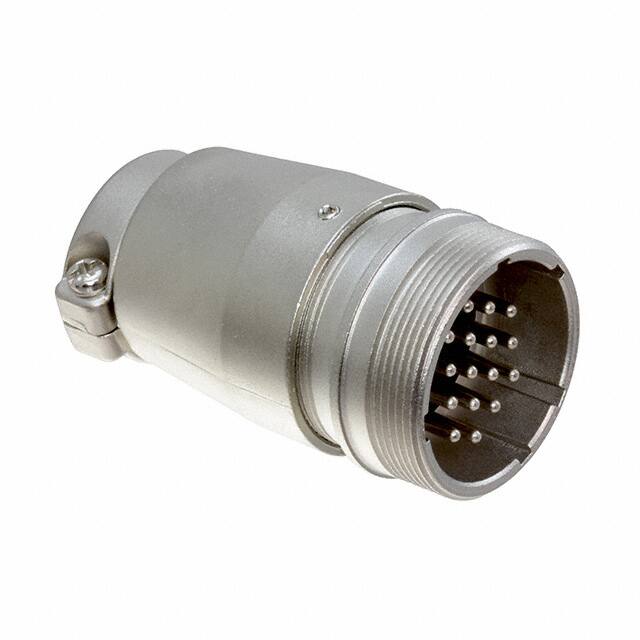

JR25JK-16P

Teknik Özellikler

Pozisyon Sayısı

16

Backshell Material Plating

Aluminum Alloy, Nickel

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-25°C~85°C

Terminal

Solder Cup

Yayın Yılı

2014

Seri

JR

Connector Type

Jack, Male Pins

Shell Finish

Nickel

Option

GENERAL PURPOSE

Shielding

Unshielded

Ambalaj

Bulk

Parça Durumu

Active

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Özellikler

Backshell, Cable Clamp

Bodyshell Style

RECEPTACLE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

REACH Uyumluluk Kodu

unknown

Backshell Type

SOLID

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

16

Orientation

Keyed

Akım Değeri

10A

Empty Shell

NO

Shell Material

Aluminum Alloy

Cable Opening

0.709 (18.00mm)

Shell Size Insert

25

Fastening Type

Threaded

Insert Material

Phenol Formaldehyde (PF)

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Nominal Gerilim

250VAC 350VDC

Fabrika Tedarik Süresi

8 Weeks

HTS Kodu

8536.69.40.20

Din Conformance

NO

ECCN Kodu

EAR99

Contact Finish Mating

Silver

Kurşunsuz Kodu

yes
