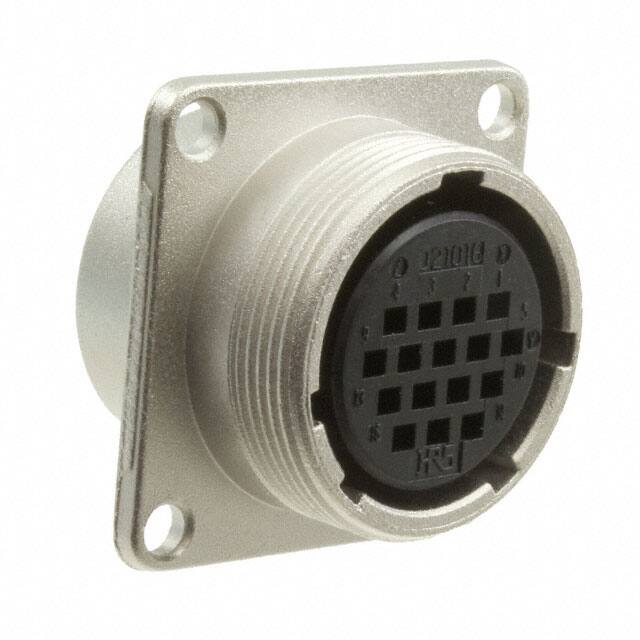

JR21RK-16SC

Teknik Özellikler

Shell Material

Aluminum Alloy

Contact Type

Crimp

Contact Shape

Circular

Material Flammability Rating

UL94 V-0

Insert Material

Polycarbonate (PC)

Shell Size Insert

21

Rated Current Signal

3A

HTS Kodu

8536.69.40.20

Din Conformance

NO

Body Breadth

1.26 inch

Contact Resistance

10mOhm

Montaj

Flanges, Panel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~85°C

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

1000VAC V

Body Depth

0.906 inch

Mounting Feature

Flange

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

JR

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Orientation

Keyed

Empty Shell

NO

Total Number Of Contacts

16

Contact Materials

COPPER ALLOY

Fastening Type

Threaded

Tip

For Female Sockets

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

8 Weeks

Reliability

COMMERCIAL

Iec Conformance

NO

Body Length Or Diameter

1.26 inch

Housing Color

Silver

Pozisyon Sayısı

16

Number Of Ports

1

Insulation Resistance

1000000000Ohm

Contact Sizes

1.0mm
